Launch Date:
2015
Channels:
5.0
Speaker Connection Type:
HDMI transmission
Speaker Cabinet Material:
Wood
Number of Speakers (Front):
2
Special Feature:
Mini System
Disc Formats:
None
Number of Speakers (Rear):
2
Sound Mode:
DTS
Model Number:
Swans 2.3BHT
Brand Name:
QUEENWAY
Number of Speakers (Middle):
1
Channels:
2.3B
Swans 2.3BHT 5.2 Home Theater low level distortion powerful linear output active ultimate ribbon home theater system customized
Attention: Because this home theater is customized , so If you want to , please wait for 7-15 days .
Because this home theater is too big , so the shipping freight is not inaccurate , if you are interested in this
one, and want to purchase , please contact us to confirm the actual shipping cost .
parameters
Front Main Speaker Swans 2.3B | |
System Type | 3-way 4th-order vented box system |
Drivers Configuration | Four 6.5" bass-midranges Sixteen 2” dome midrange drivers Sixteen isodynamic ribbon tweeters |
Frequency Range | 40Hz - 20kHz |
Harmonic Distortion | 50Hz - 20kHz ≤1%(2.83V/1m) |
Sensitivity(2.83V/1m) | 90dB |
Nominal Impedance | 16Ω |
Power Handling | 10W - 500W |
Dimensions (W×D×H) | 34"×18.1"×76.0" |
|
Active Subwoofer Swans Sub15B | |
System Type | One-way sealed active subwoofer |
Drivers Configuration | 15" subwoofer |
Frequency Range | 26Hz - 120Hz(DIRECT) 26Hz - 80Hz(INTERNAL X-OVER) |
Rated Power | 1000W |
Signal-to-Noise | >100dB(Unweigthed) |
Input Sensitivity | 100mV |
Input Impedance | 22kΩ |
Dimensions (W×D×H) | 22.9"×21.1"×18.7" |
Net Weight | 75.0 lbs |
Front Center Speaker Swans 2.3C+ | |
System Type | 3-way 4th-order vented box system |
Drivers Configuration | Four 6.5" bass-midrange drivers 1.1” soft dome tweeter Two isodynamic ribbon tweeters |
Frequency Range | 40Hz - 20kHz |
Harmonic Distortion | 55Hz - 20kHz ≤1%(2.83V/1m) |
Sensitivity (2.83V/1m) | 90dB |
Nominal Impedance | 8Ω |
Power Handling | 10W - 320W |
Dimensions (W×D×H) | 40.2"×13.4"×12.1" |
Net Weight | 72.7 lbs |
Surround Speaker HiVi F5R+ | |
System Type | Di-pole surround speakers |
Drivers Configuration | Two 6.5" bass-midrange drivers Two 1.1” soft dome tweeters |
Frequency Range | 55Hz - 20kHz |
Harmonic Distortion | 53Hz - 20kHz ≤1%(2.83V/1m) |
Sensitivity (2.83V/1m) | 87dB |
Nominal Impedance | 8Ω |
Power Handling | 10W - 150W |
Dimensions (W×D×H) | 19.9"×11.4"×9.3" |
Net Weight (each) | 28.7 lbs |
Finish | Wood veneer and multi coat piano lacquer with aluminium ring |

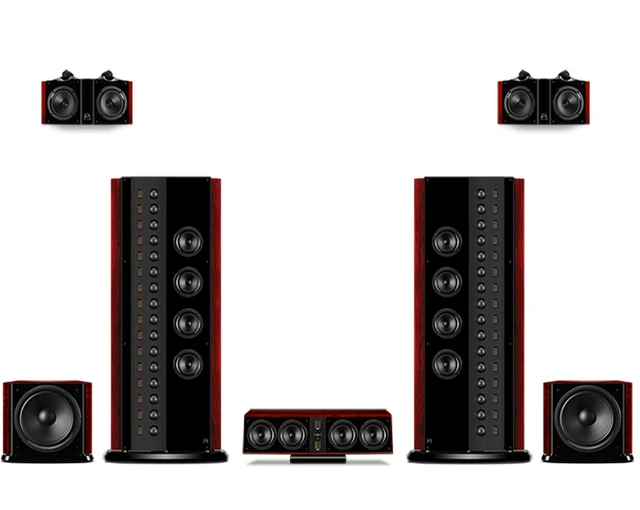

The Swans2.3B is a larger than life home theater speaker system. Its foundation relies on the principal of low
level distortion and a powerful output with a linear sound source. This active ultimate ribbon home theater
system consists of two beautifully crafted front L/R main speakers, one center speaker, two rear surround
speakers, and two powered subwoofers.
A single front main speaker has sixteen isodynamic ribbon tweeters that work in conjunction with sixteen 2”
soft dome midrange drivers and four 6.5” bass-midrange drivers. They have been arranged in a true linear
sound source configuration. The Center and Rear speakers are matched with the system. Each powered
subwoofer has one 15” woofer and a 260W amplifier.
The Swans 2.3B is suitable for a villa, or a private home theater. The system displays its hand crafted luxury:
the high standing front main speakers sport an aluminum panel holding the 32 drivers and wood veneer
finishes covered with a clear piano lacquer. This system comes with a powerful external amplifier, eliminating
the need to choose other brand amps. The system is easy to set up. Sounding natural, true, and pristine it’s a
whole new experience for home entertainment systems. Despite the size of the front main speakers, the built
in handles make the set up and handling a breeze.
High end driver design, arranged in a true linear sound source configuration, providing a larger than life
experience, with its beautiful classic design, establishes the Swans 2.3B as the ultimate dream in home
theater systems. Based on the principal of low distortion within a powerful output, plus two 15” powered
subwoofers, makes the Swans 2.3B perfect for large listening environments.
5.1 Home Theater Layout
Home theater installation method
About the products item details, there we carefully tell you: these "item specifics" produced by AliExpress system, some of these are not correct or even wrong. So the correct "item description" is from the detailed description.
Brand: Tannoy, it is not Queenway(produced by AliExpress system) brand.
Because of the sales quantity reason, we have no power to build after-sales service center in your local. But our products price is more cheaper under the same quality, we are trying to provide better service!
The warranty period for all our items is 2 years. Within 2 years, we can provide repairing parts free. and you needn't pay the shipping fee from China, there need buyer and seller cooperation of problem fault diagnosis.
After 2 years date, we can provide repairing parts free. But the buyer should pay the shipping fee from China.
Unit Type:
Set
Package Weight:
390.0kg (859.80lb.)
Package Size:
30cm x 50cm x 60cm (11.81in x 19.69in x 23.62in)
